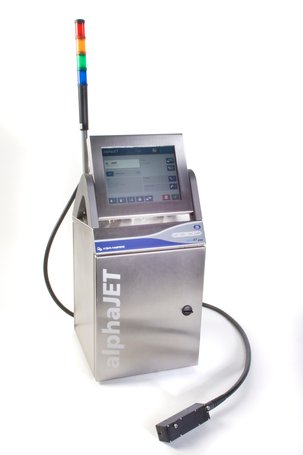

alphaJET evo

‹
›

Details

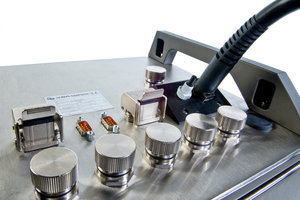

Housing

  • Modern design.
  • Protection class IP 65.
  • Stainless steel.
  • Optional: integrated UPS.

Touch screen display

  • 10.4" TFT colour touchscreen display with comfortable user interface.
  • Solvent-resistant.
  • Resistive display: swivelling and removable.
  • Graphic user interface (WYSIWYG).

Ink system

  • Modular and easily accessible construction.
  • High availability due to durable components.
  • Easy and time-saving maintenance.
  • Efficient and ecological consumption figures.
  • No cartridge system.
  • Solvent recovery as standard.

Print head

  • Optimized design (head flap) → Easy cleaning on the line.
  • Nozzle seal → optimal start-up behaviour.
  • Head heating → stable droplet formation.
  • Integrated visual ink jet monitoring.

Interfaces and I/O standard

  • Ethernet.
  • 2 x RS 232.
  • 2 Parallel inputs for product sensor and encoder.
  • Remote socket.
  • Digital I/O port with 8 inputs and 4 outputs.
  • Freely programmable alarm relay.
  • USB.
  • Optional: four-colour signal beacon.
  • Optional: customer-specific software (PrintControl®).

Technical data

Dimensions:
Control unit: 320 x 320 x 700 mm (incl. operating terminal)
Print head: 40 x 40 x 145 mm, (L x W x H)
Print system:
Continuous inkJET system consisting of control unit and printing unit.
Ink system:
One-liter bottles for ink and solvent. Easily replaceable. Solvent consumption only 2 ml/h at 20°C thanks to solvent recovery. No compressed air connection necessary.
Ink types:
Large variety of opaque and dye-based inks for multiple materials and applications.
Working conditions:
Temperature: +5°C to +45°C, max. 90% relative air humidity, non-condensing.
Hardware:
Control unit and printing unit are independent of each other. This means that additional printing units can be controlled and synchronized by one single master unit. Peripheral equipment, such as an xy-axis control system, is controlled and synchronised via a previously defined interface.
Text composition:
Automatic time and date functions, consecutive numbering, bar codes, data matrix codes, logos, etc., TrueType fonts.
Error diagnosis:
Automatic diagnosis in clear text.
Print speed:
Up to 2800 characters per second.
Print head distance:
1 - 25 mm
Print resolution:
Standard license: 32 pixels
Professional license: 48 pixels
Type height:
0.8 to 15 mm
Standard license: 5 lines (5x5 matrix)
Professional license: 8 lines (5x5 matrix)
Power supply:
86 to 264 V ± 10%, 50 - 60 Hz, current consumption. max. 1.0 / 0.5 A.
Safety standard:
Ink return control; Automatic viscosity and ink level control; Remote monitoring of printing errors; Electronics and ink system are installed separately; Literally emission-free.
