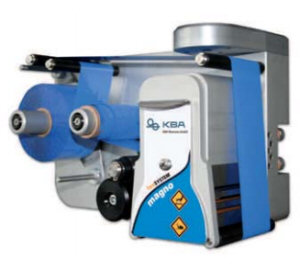

hpdSYSTEM magno

‹
›

Details

Technical data

Product range:
Model H (horizontal), selectively right or left orientation.
Dimensions:
188 x 282 x 168 mm (H x L x W)
Printing format:
Up to 50 x 80 mm.
Output:
Up to 200 prints per minute, depending on material and real print area.
Color foil length:
Max. 305 m, ø 110 mm.
Film feed:
2 - 50 mm – infinitely variable.
Printing pressure:
1170 N at 6 bar.
Drive type:
Pneumatic.
Air connection:
Min. 4 - max. 6 bar, ø 6/4 mm.
Air consumption:
ca. 0.25 l per print (at max. feed).
Electrical connected loads:
24 V DC (± 10 % tolerance), 160 VA.
Protection class:
Printer: I
Control unit: protection class I, degree of protection IP 54.
Temperature (infinitely variable):
323 - 473 K (50° - 200°C)
Heating power:
150 W.
Print time (infinitely variable):
Approx. 70 - 2000 ms.
Reset function:
Sliding protection with reset function.
