Output:
|
10 Watt / 20 Watt
|
Connection values:
|
F-9010 (10 Watt): 230 V; 50 / 60 Hz – 400 Watt
F-9020 (20 Watt): 230 V; 50 / 60 Hz – 500 Watt
F-9020 Film (20 Watt): 230 V; 50 / 60 Hz – 500 Watt
|

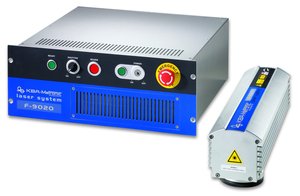

Structure:
|
Laser, scanner and scanner control in laser head, Control electronics and electrical connection integrated in control unit. Red pilot laser (standard).
|
Operation:
|
-
PC software.
-
Pocket terminal.
-
Touchscreen terminal.
|
Software:
|
-
Simple text creation via PC software with Windows user interface (2000/XP).
-
WYSIWYG display.
-
Free choice of character size.
-
Different date and time formats.
-
Serial numbering or text adaptation barcodes.
-
2D codes, database printing, logos or graphics loadable in IMG or DXF format.
-
True Type Fonts, Unicode, MFF font, Crystal Fonts, 7 x 5, 5 x 5.
-
Variable writing speed, intermittent and continuous printing.
|
Interfaces:
|
Ethernet TCP/IP, RS 232.
|
Cooling system:
|
Integrated air cooling system.
|
Environment:
|
Temperature: + 10° to + 40° C
Relative air humidity: max. 90 %, non-condensing.
|
Options:
|
21 CFR Part 11.
|
Weight:
|
Laser head: approx. 5 kg
Control unit: approx. 21 kg
|
Laser head dimensions:
|
442 x 107 x 97 mm (D x W x H)
|
Control unit dimensions:
|
482 x 448 x 169 mm (L x W x H)
|
