hpdSYSTEM vario

‹
›

Details

Technical data

Product range:

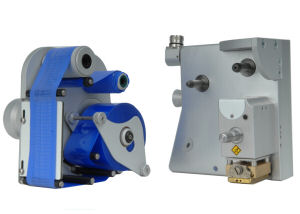

  • Model H (horizontal), selectively right or left orientation.
  • Model V (vertical, see figure above), selectively right or left orientation.
Dimensions:
Model H: 142 x 285 x 166 mm (H x L x W).
Model V: 206 x 190 x 166 mm (H x L x W).
Printing format:
Up to 30 x 50 mm.
Output:
Up to 1000 prints per minute, depending on material and real print area.
Color foil length:
Max. 305 m, ø 100 mm.
Film feed:
2 - 30 mm – infinitely variable.
Printing pressure:
580 N at 6 bar.
Drive type:
Pneumatic.
Air connection:
Min. 4 - max. 6 bar, ø 6/4 mm.
Air consumption:
ca. 0.16 l per print (at max. feed).
Electrical connected loads:
24 V DC (± 10 % tolerance), 130 VA.
Protection class:
Printer: I
Control unit: protection class I, degree of protection IP 54.
Temperature (infinitely variable):
323 - 493 K (50° - 220°C).
Heating power:
120 W.
Print time (infinitely variable):
Approx. 20 - 2000 ms.
Reset function:
Automatic reset function at cassette exchange.
