Output:
|
5 Watt / 10 Watt / 20 Watt
|
Connection values:
|
D-5005 (5 Watt): 230 V; 50 / 60 Hz – 800 Watt
D-5010 (10 Watt): 230 V; 50 / 60 Hz – 1000 Watt
D-5020 (20 Watt): 230 V; 50 / 60 Hz – 1200 Watt
|

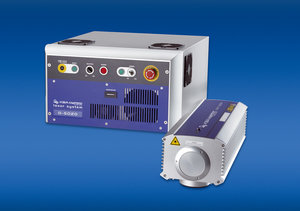

Structure:
|
Laser, scanner and scanner control in laser head, Control electronics and laser pump module integrated in control unit. Electronics for scanner system.
|
Laser head:
|
Diode-pumped Nd: YAG laser (DPSS, TEM00), connected with the control unit by means of fibre optics, wavelength 1064 nm, X/Y scanner, red pilot laser.
|
Radiation emission:
|
0° or 90°
|
Operation:
|
-
PC software.
-
Pocket terminal.
-
Touchscreen terminal.
|
Software:
|
-
Simple text creation via Marca PC software with Windows user interface (2000/XP).
-
WYSIWYG display.
-
Free choice of character size.
-
Different date and time formats.
-
Serial numbering or text adaptation barcodes.
-
2D codes, database printing, logos or graphics loadable in IMG or DXF format.
-
Unicode, MFF font, Crystal Fonts 7 x 5, 5 x 5, True Type Fonts.
-
Variable writing speed, intermittent and continuous printing.
|
Interfaces:
|
Ethernet TCP/IP, RS 232
|
Cooling system:
|
Integrated air cooling system
|
Environment:
|
Temperature: + 10° to + 40°C
Relative air humidity: max. 95 %, non-condensing.
|
Options:
|
21 CFR Part 11.
|
Weight:
|
D-5005 / D-5010: approx. 70 kg
D-5020: approx. 85 kg
|
Laser head dimensions:
|
532 x 190 x 141 (160) mm (L x W x H)
|
Control unit dimensions:
|
650 x 543 x 297 mm (D x W x H)
|
