Technical data
|
Output:
|
10 Watt / 30 Watt / 60 Watt
|
Electrical connections:
|
K-1010 (10 Watt): 230 V; 50 / 60 Hz; 1 Phase + N 600 W
K-1030 (30 Watt): 230 V; 50 / 60 Hz; 1 Phase + N 1000 W
K-1060 (60 Watt): 230 V; 50 / 60 Hz; 1 Phase + N 1600 W
|

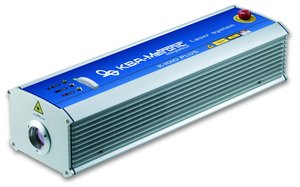

Laser head:
|
Laser, control electronics, computer and scanner integrated in the laser (K-1060 with separate control unit), sealed CO₂ laser tube/RF technology.
|
Wavelength:
|
10.6 µm, optional 9.3 µm
|
Beam exit:
|
0° or 90°
|
Operation:
|
|
Software features:
|
Simple text creation via Pocket terminal, touchscreen terminal or Marca PC software with Windows interface (Win 2000/XP), WYSIWYG display, freely selectable font size, various date and time formats, consecutive numbering or text adjustment, bar codes, 2D codes, database printing, logos or graphics can be loaded in IMG or DXF format, MFF font, dot fonts 7 x 5, 5 x 5, true-type fonts, Unicode fonts, variable write speed, intermittent and continuous labeling and a variety of additional software features.
|
Interfaces:
|
RS 232, Ethernet TCP/IP, I/O
|
Cooling system:
|
Integrated air-cooling
|
Work environment:
|
Temperature range + 10° to + 41°C, relative air humidity max. 95 %, non-condensing, no vibrations.
|
Options:
|
Pilot laser, 21 CFR Part 11, split head.
|
Dimensions and weights:
|
|
K-1010 SP/Plus:
|
621 x 190 x 140 mm, L x B x H, approx. 15 kg
|
|
K-1030 SP/Plus:
|
658 x 235 x 193 mm, L x B x H, approx. 28 kg
|
|
K-1010 SHS:
|
770 x 190 x 140 mm, L x B x H, 17 kg
|
|
K-1030 SHS:
|
775 x 235 x 193 mm, L x B x H, 30 kg
|
|
K-1060 SHS:
|
Laser head: 75 x 235 x 193 mm, L x B x H, 30 kg
Control unit: 650 x 543 x 297 mm, L x B x H, 38 kg
|
|
|
