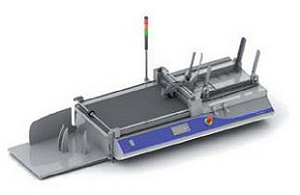

udaFORMAXX

‹
›

Details

Technical data

Material width:
udaFORMAXX “i”: min. 30 mm, max. 450 mm
udaFORMAXX “c”: min. 64 mm, max. 368 mm
Material length:
udaFORMAXX “i”: min. 60 mm, max. 500 mm
udaFORMAXX “c”: min. 45 mm, 430 mm (500 mm optional)
Material thickness:
udaFORMAXX “i”: min. 100 g/m2, max. 7.5 mm
udaFORMAXX “c”: min. 100 g/m2, max. 5 mm
Speed*:
infinitely variable to max. 90 m/min.
Output:
up to 1.000 pcs./min.
Operation:
Operation terminal with graphic display and LCD screen.
Mech. construction:
Corrosion free: VA/anodised aluminium, most suitable e.g. for the pharmaceutical industry.
Dimension:
1300 (+ 626 stacker) x 680 x 362 mm, L x W x H
Weight:
ca. 107 kgs (without coding equipment)
Power connection:
230 V (115 V) + 10 % tolerance, according to IEC38, approx. 700 VA (without coding system).
Standard for both systems:
  • Brushless servo drive.
  • Display for settings and status.
  • Encoder for speed settings.
  • Print signals for 2 coding- / camera systems.
  • Feeder and delivery.
Optional for both systems:
  • Double layer control.

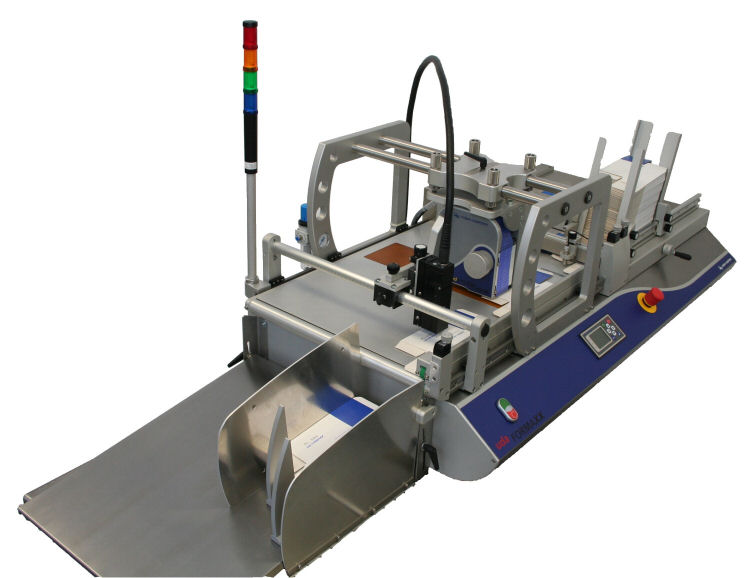

  • Indicator light.
  • Frames for coding systems.
  • Connectors for coding systems.
  • Print detection, camera systems.
  • Shuffle board.
  • Print signals for 4 coding- / camera systems.

* - This data refers to the basic udaFORMAXX without application.
