hpdSYSTEM nano

‹
›

Details

Technical data

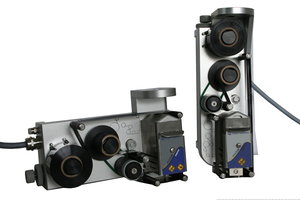

Product range:
  • Model H (horizontal), selectively right or left orientation.
  • Model V (vertical, see figure above).
Dimensions:
Model H: 144 x 237 x 127 mm (H x L x W)
Model V: 270 x 88 x 128 mm (H x L x W)
Printing format:
Up to 15 x 30 mm.
Output:
Up to 500 prints per minute, depending on material and real print area.
Color foil length:
Max. 122 m, ø 72 mm.
Film feed:
2 - 15 mm - infinitely variable.
Printing pressure:
373 N at 6 bar.
Drive type:
Pneumatic.
Air connection:
Min. 4 - max. 6 bar, ø 6/4 mm.
Air consumption:
ca. 0.11 l per print (at max. feed)
Electrical connected loads:
24 V DC (± 10 % tolerance), 90 VA.
Protection class:
Printer: I
Control unit: Protection class I, degree of protection IP 54.
Temperature (infinitely variable):
323 - 473 K (50° - 200°C).
Heating power:
80 W.
Print time (infinitely variable):
Approx. 50 - 2000 ms.
Reset function:
Sliding protection with reset function.
