Printing
|
-
Up to 5 lines
-
32 pixels
-
Font size 2 - 15 mm
-
Max. speed:
-
2,400 characters / second (5x5 matrix)
-
2,200 characters / second (7x5 matrix)
-
Text composition:
-

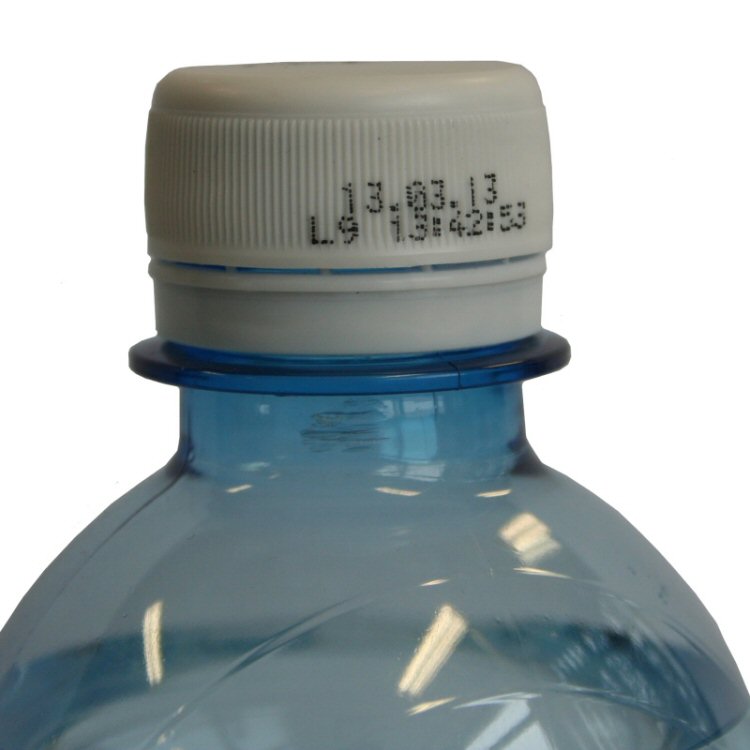

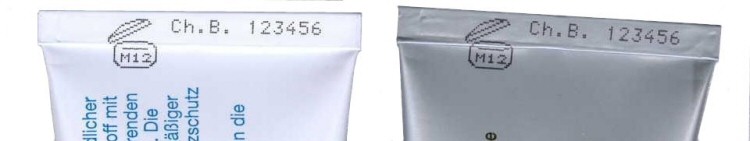

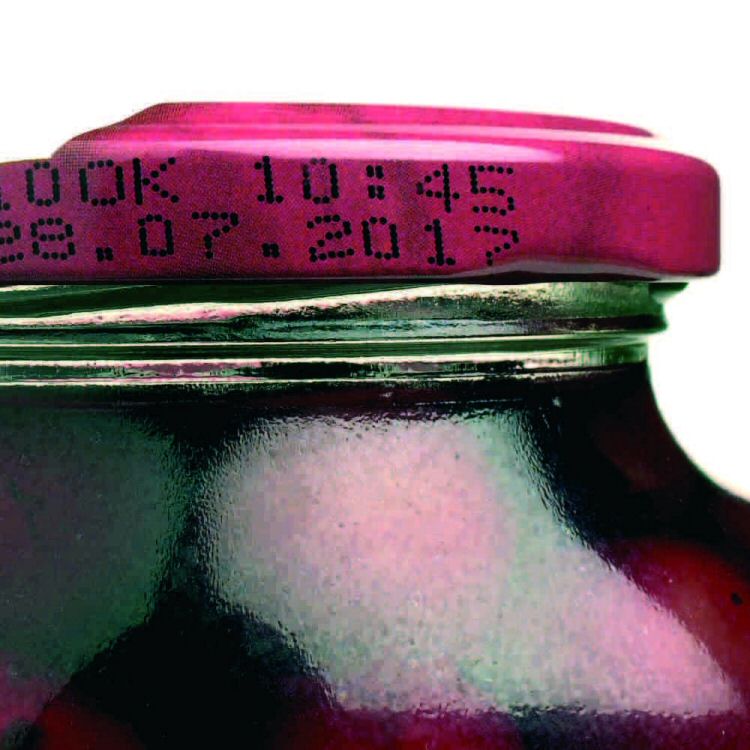

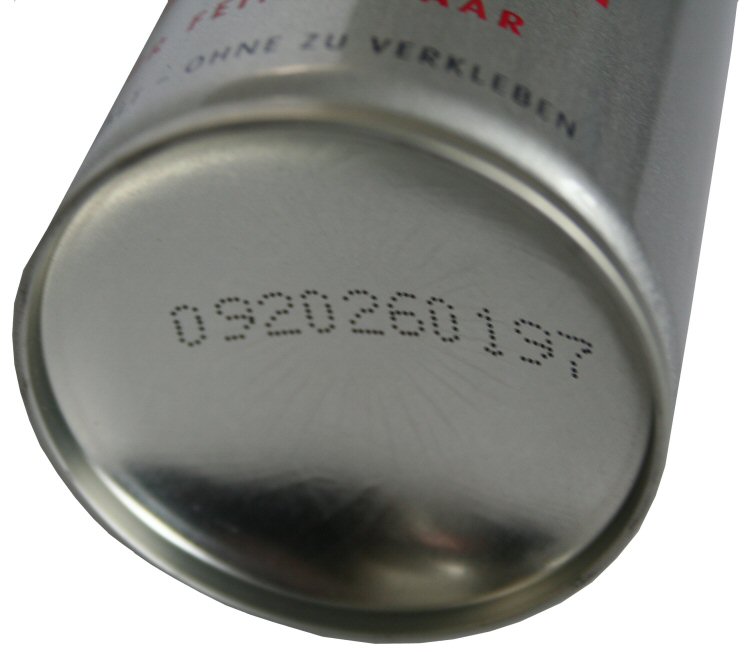

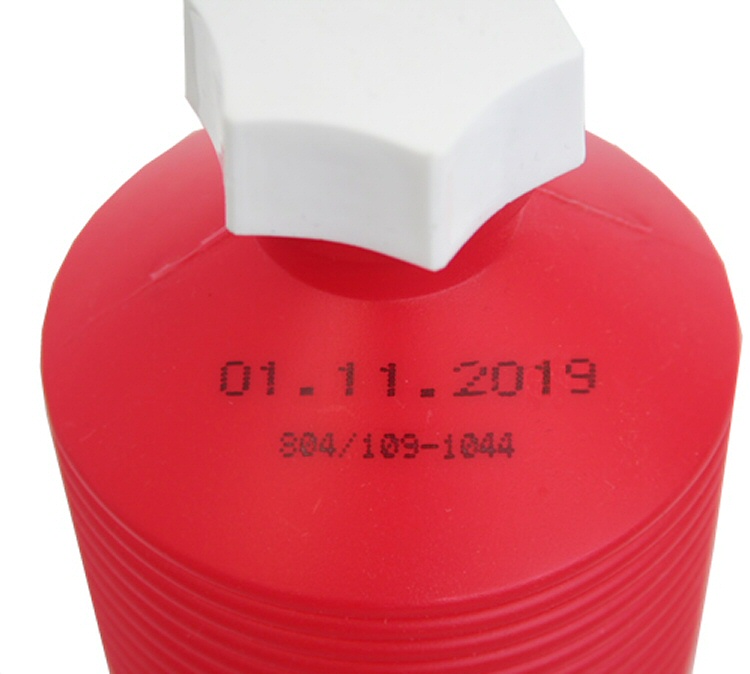

Automatic time and date functions, consecutive numbering, bar codes, logos etc.
-
Prints TrueType fonts, as well as a large selection of other fonts.
|
Operation
|
-
8.4" TFT touch screen display with an intuitive user interface
-
Solvent resistant display
-
Graphic User Interface (WYSIWYG)
-
User profile management system
-
Easy changeover of languages
|
Interfaces
|
|
Print head
|
-
Visual ink jet monitoring through integrated stroboscopic magnifying glass
-
Space-saving, compact design
-
Easily accessible thanks to head flap
-
Simple and accurate positioning
|
Ink system
|
-
Integrated solvent recovery, for exceptionally low solvent consumption
-
700 ml bottles for ink and solvent, easily replaceable
-
Consumables management for enhanced security (automatic identification)
-
Service friendly
|

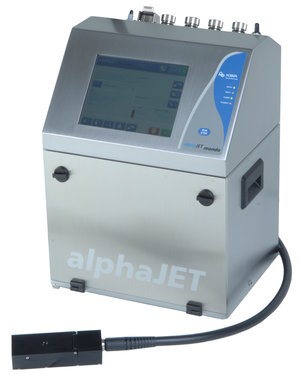

Technical data
|
Dimensions:
|
Control unit: 340 x 270 x 550mm (incl. operating terminal)
Print head: 40 x 40 x 145mm, L x W x H
|
Housing:
|
Stainless steel IP 65 protection class (no compressed air required)
|
Temperature:
|
+5°C to +40°C; relative humidity max. 90 %, non-condensing
|
Hardware:
|
Control unit and printing unit are independent of each other. Additional printing units can be controlled and synchronized by one single master unit.
|
Error diagnosis:
|
Automatic diagnosis displayed in clear text
|
Power supply:
|
86 - 264 V ± 10 %, 50 - 60 Hz
Max. power consumption 0.5 / 0.25 A
|
Safety features:
|
Ink return control; Automatic viscosity and ink level level control; Remote monitoring of printing errors; Electronics and ink system are installed separately; Practically emission-free.
|
|
