Dimensions:
|

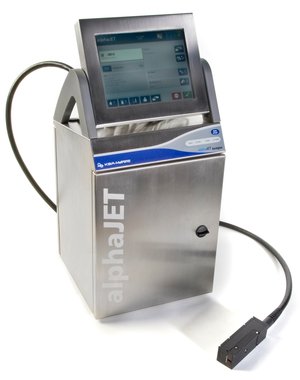

Control unit: 320 x 320 x 700 mm (incl. operator terminal)
Print head: 40 x 40 x 145 mm (L x W x H)
|
Print system:
|
Continuous ink jet system, comprising a control unit and a printing unit.
|
Ink system:
|
1-litre bottles for ink and solvent, easy to change. Solvent consumption only 2 ml/h at 20°C thanks to solvent recovery system. No requirement for compressed air.
|
Ink types:
|

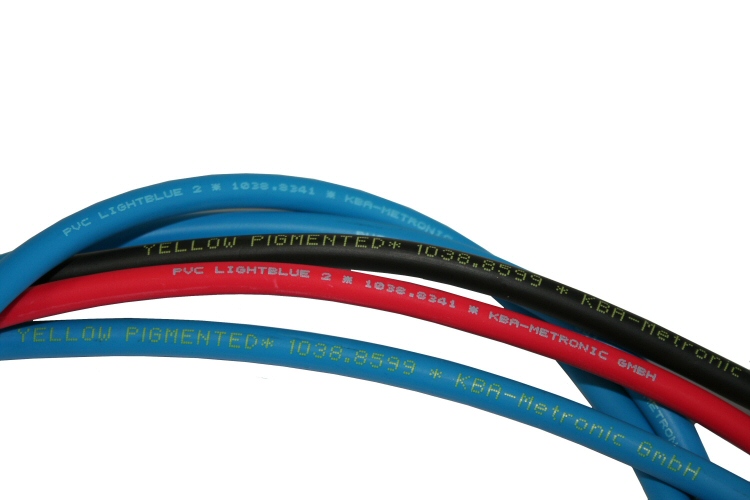

Suited to your individual requirements, depending on product material and application, pigmented inks possible.
|
Working conditions:
|
Operating temperature: +5° to +45°C, max. 90% relative air humidity, non-condensing.
|
Hardware:
|
The control unit and printing unit operate independently of each other. This allows additional printing units to be controlled from one master printer. Peripheral equipment can be controlled and synchronised via defined interfaces.
|
Text features:
|
Automatic time and date function, continuous numbering, barcodes, data matrix codes, logos etc.; printing of True Type fonts.
|
Fault diagnosis:
|
Automatic diagnostics displayed in plain text.
|
Print speed:
|
Up to 3500 characters per second.
|
Print head distance:
|
1 - 25 mm.
|
Print resolution:
|
Standard license: 16 dots
Professional license: 24 dots
|
Type height:
|
0.8 - 15 mm
Standard license: 2 lines (7x5 matrix)
Professional license: 4 lines (5x5 matrix)
|
Connected loads:
|
86 - 264 V ± 10%, 50 - 60 Hz, maximum power consumption 1.0 / 0.5 A.
|
Safety standard:
|
Ink return control; automatic viscosity and ink level control; remote monitoring of printing errors; separation of the electronics and ink system; practically zero emissions.
|
